Global: Embosser Setup: General

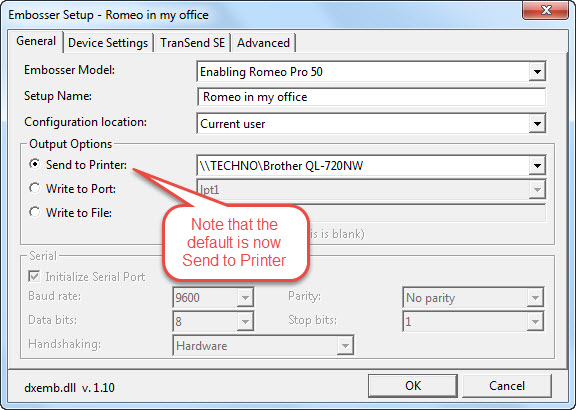

When you select "New" from the Global: Embosser Setup dialog, you will be presented with the following dialog.

This dialog contains four tabs:  General (This topic), Device Settings, TranSend SE and Advanced.

Embosser Model:  This is a drop-down list containing an alphabetic listing of all supported makes and models of braille embosser.  Note however that Generic embossers are at the top of the list.

If your embosser is not listed, then select "Generic" if your embosser embosses on just one side of the page. Select "Generic Interpoint" if it embosses on both sides of the page.

Setup Name:  You may leave this field blank, in which case, DBT will simply use the name of the embosser you selected above.  However, you may type in a free-format name of your own choice. (See Additional Notes for more information)

Configuration Location: A drop down list with two choices a)  The current user, or b) All users of this computer.

Note: Network administrators should be aware that "Current User" essentially stores this configuration on the User's Profile.  Hence care should be taken if Roving Profiles are in use. If you are setting up a model installation for replication throughout a network using a network installation image, then you should set the Configuration Location for all embossers to "All users of this computer".  DBT's installer supports automatic migration of embosser configurations set this way, using a network installation image.

Output Options - here you select one of 3 Radio Buttons.

(Users of earlier versions should note that the default is now "Send to Printer")

1. Send to Printer:  If you have installed your braille embosser as a Windows Device, or to use Windows drivers, you should normally find it listed here. (You can use this option only if your braille embosser shows up among the printers in the Windows' Printers Control Panel.)
2. Write to Port:  If your embosser is not listed above, you may select a Parallel Port (lpt#), or Serial Port (com#) from the list box.
3. Write to File:  There are occasions when you may wish to redirect braille output to a file.  Normally you should leave this field blank, in which case you will be prompted for a file name each time you emboss using this Brailler Device.  Otherwise you may enter a path and file name as appropriate.
   You should also be aware that if you specify a file name, the file will be overwritten without prompting, therefore you should only specify a file name in exceptional circumstances.

Serial: This section will be disabled unless you have selected a Serial (com#) device.  Enter the parameters for Baud Rate, Parity, Data Bits and Stop Bits and Handshaking as required.

If you are using a Serial Device, please consult your manual or supplier for appropriate details.
