Setting the Style Area Width

This is an extremely useful Word feature which, when in Draft and Outline view, reveals which paragraph styles are in use, as you can see from the illustration below. (This feature is not turned on in Word by default.)

Example page with style area shown at the left margin

In Word 2003 and earlier, select Word's Tools menu: Options, then the View tab.

Set "Style Area Width" to a non-zero value. The figure depends on what measurement scale you are using, but 2 centimeters or 1 inch will be a good start.

In Word 2007 and later, Select the File icon, (top left) and then Options. Select "Advanced" from the list on the left, and navigate down to the "Display Section" where you can set the measurement units and "style area pane" width as shown highlighted in yellow below.

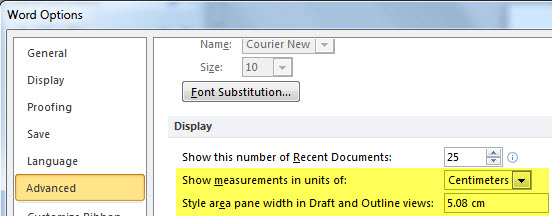

Image shows Word 2010's Advanced Options, Display section with "Show Measurements in Units of:" and "Style area pane width in Draft and Outline views:" highlighted in yellow.

NOTE: Do not worry if your Style Area Width column is too large or too small. You can re-set it as above, or when in a document in Draft View drag it with the mouse to a more suitable width.
