View: Translated Line

Keystroke: Ctrl + F8

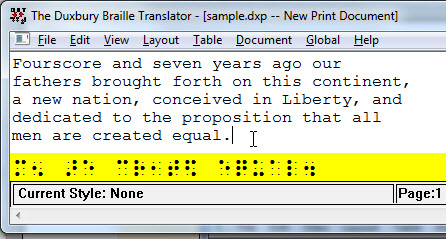

Image shows the DBT Text editor window with a yellow bar at the bottom of the window displaying the braille equivalent of the line where the cursor is located.

When a print file is open (as illustrated above), the translated line shows the braille equivalent of the current print line. The fonts used and their display sizes, are determined in the Global Menu: Default Views.

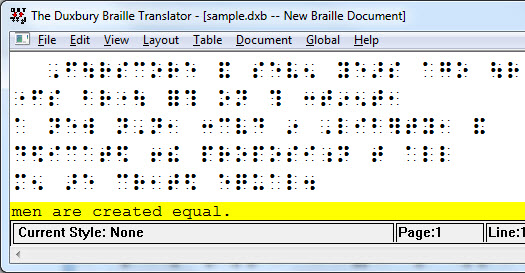

Image shows the DBT Braille editor window with the backtranslated equivalent of the line the cursor is located on.

When a braille file is active, this option will turn the bottom line of the current document window into a display of the print equivalent of the braille line on which the cursor rests.

Note: the translated line is generated by a built-in braille-to-print translator, which is supported only for some languages. See Language Translation Tables for details. See Language Translation Tables and the relevant sub-topic(s) for more specific details in the on-line Help. Moreover, the translated line is generated by translating the braille into print without regard to context. Therefore, the translated line is not an accurate reflection of text marked for grade 1 or other types of braille.

The limitations of the translated line are especially apparent when viewing braille for a language where braille-to-print translation is not supported, or where viewing mathematics braille.
