DBT's handling of the Interpoint 55 high-volume production embosser has been upgraded significantly since the initial release of DBT 10.6.
We've fixed a bug that caused DBT to fail sending any output whatsoever to the Interpoint 55. So all DBT users who have an Interpoint 55 will be well-served to install DBT 11.1 SR3.
We've also added support for specifying the VSHIFT value to the Interpoint 55. VSHIFT is a value in the range 0-3 that specifies how much to shift the top of the page down. VSHIFT is not intended for use to create a top margin. But instead, due to the unique design of the Interpoint 55, a change in VSHIFT will cause a different set of embossing pins to be used. So rotation of VSHIFT values on a monthly basis is recommended in normal use, to ensure even wear on the embosser parts, and a particular VSHIFT value may be used to avoid use of a broken pin when this is necessary.
DBT normally manages VSHIFT values automatically, setting the VSHIFT value to a value that depends on the calendar month, as shown in the following table:
|
Month |
VShift |
|
January |
0 |
|
February |
1 |
|
March |
2 |
|
April |
3 |
|
May |
0 |
|
June |
1 |
|
July |
2 |
|
August |
3 |
|
September |
0 |
|
October |
1 |
|
November |
2 |
|
December |
3 |

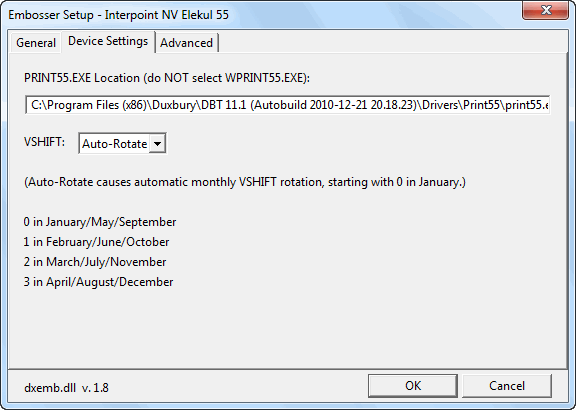

If you want to change this behavior, for example to set a particular VSHIFT value that will avoid use of a broken pin, or to resume the regular rotation after the pin is repaired, select Modify Embosser from the Global Embosser Setup dialog, then change the VSHIFT value in the Device Settings tab, as shown below:
